Horizontal Directional Drilling

Product advantage

- Slewing System:
There are V90N.DT/DP electric proportional displacement control, and V30G load-sensing/electric proportional displacement control is optional; the slewing motor HM6V has an optimized rotation balance design, high-speed performance and smooth start characteristics;
- Feeding System:
Pump HP5V+control valve HVSP/HVSM + fixed displacement piston motor HM7X85/variable piston motor HM6V, provide system solutions.
- Hydraulic control valves for industrial use:
Reliable in quality, superior in performance and with guaranteed efficiency. The valves can be customized according to customer’s requirements to meet the requirements of ordinary and special working conditions.

Accessory component

Horizontal Directional DrillingNameModel

Pressure(MPa)

Rate of Flow (L/min)

Download

Manually operated reversing valves

4WMM16G-L7X31.5240


Stacked governor valves

Z2FRM6CB2-L2X32QR31.532

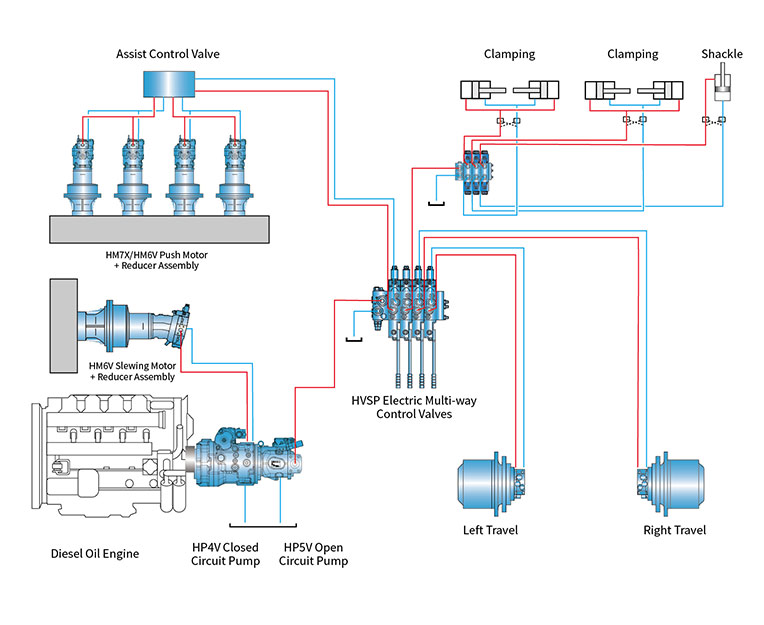

System solution

5 水平定向钻.jpg
